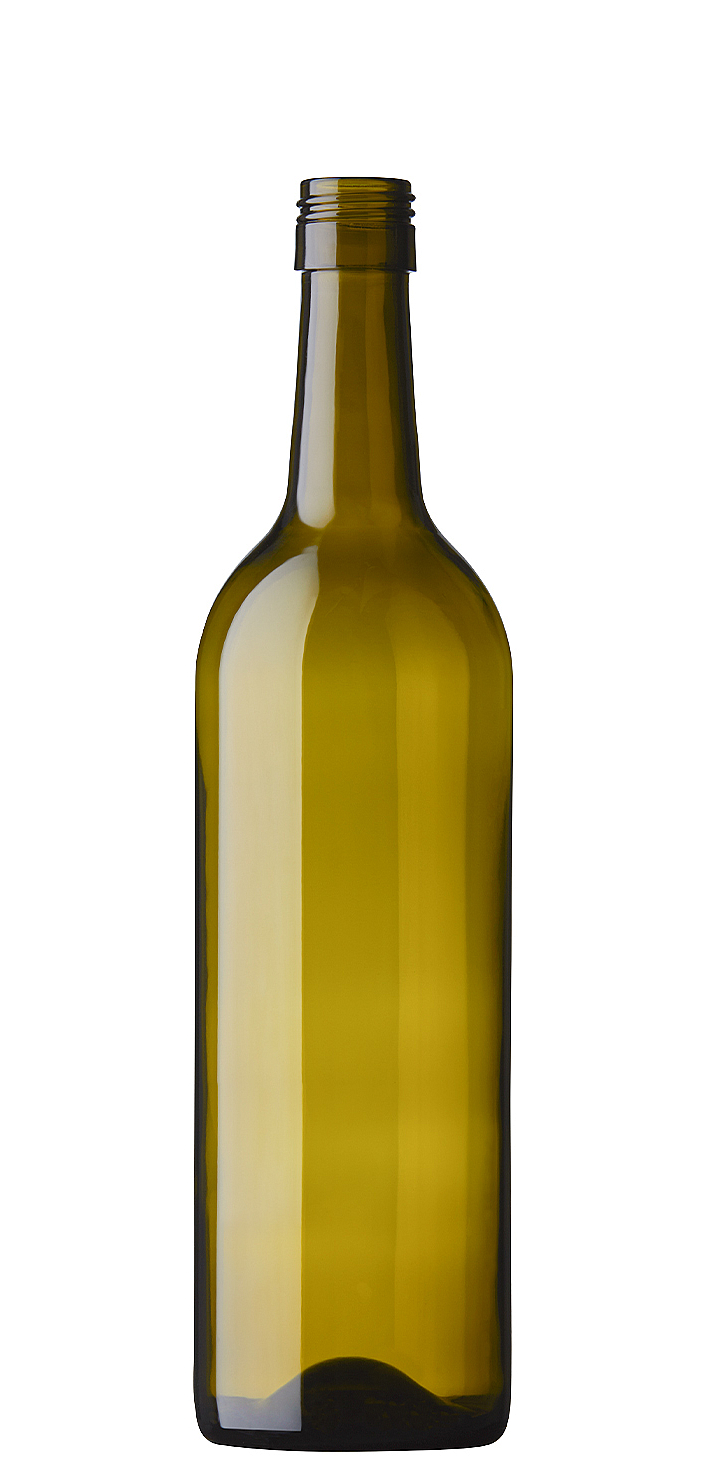

| CODE | CR502 |
| MOUTH FINISH | BVS 30 x 60 |
| DIAMETER | 74.5mm |
| HEIGHT | 295.0mm |
| LABEL PANEL | 144.7mm |
| PUNT DEPTH | 15.0mm |
| WEIGHT | 385g |
| 75cl FILL POINT | 35.0mm |
| PALLET LOAD | 1624 |
| LAYERS | 7 |
Available Colours
ANT, FLT, ICE
CLICK TO DOWNLOAD BOTTLE SPECS
NOTE A: CONTROLLED NECK & MOUTH REFER TO DIMENSIONAL SPECIFICATIONS FOR BVS GLASS MOUTH FINISH Norm: EN16293
LABELLING GUIDE: INDUSTRY STAKEHOLDERS INCLUDING GLASS SUPPLIERS, LABEL CONVERTERS AND CONTRACT BOTTLERS HAVE COOPERATED TO DETERMINE THE OPTIMAL LABEL SIZE AND POSITIONING ON BOTTLES AVAILABLE IN NZ.
