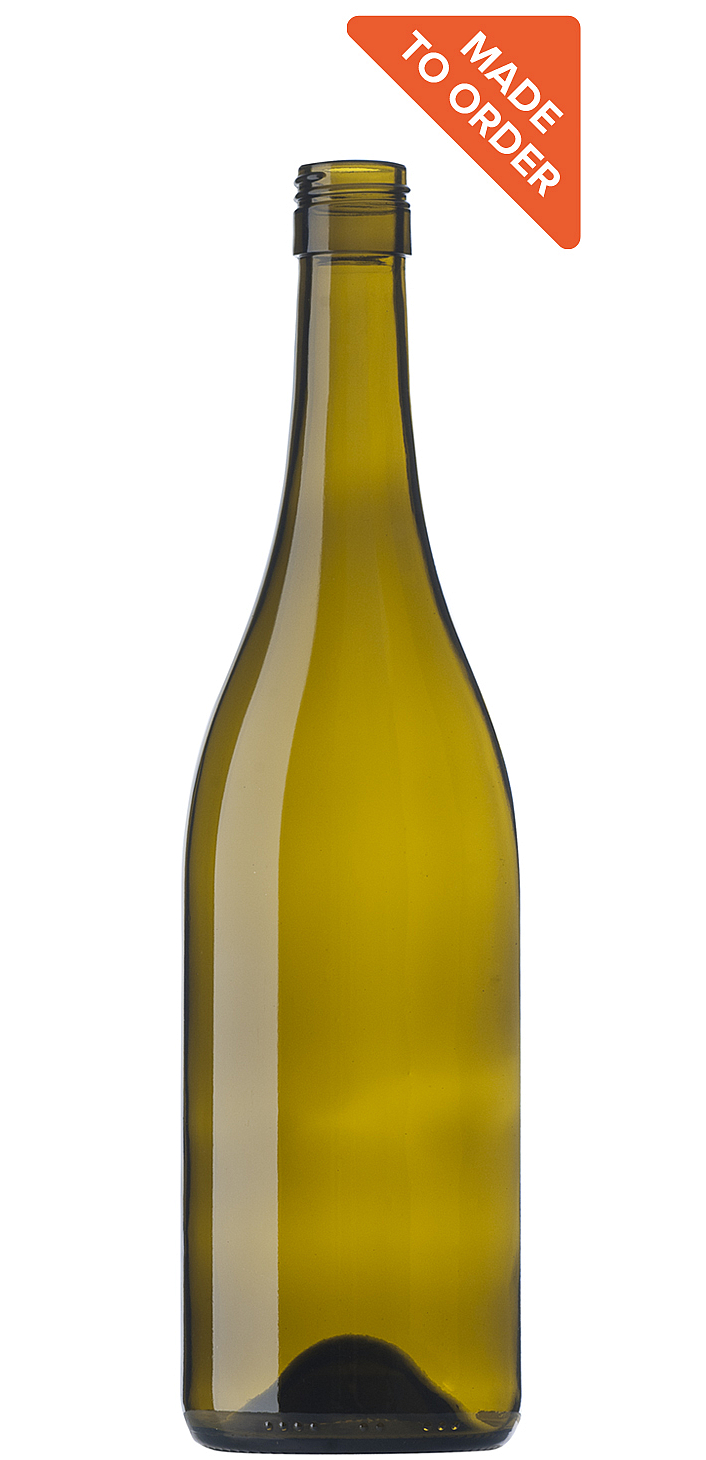

Burgundy Export

Bottle specifications

CODE CR403
MOUTH FINISH BVS 30 x 60
DIAMETER 80mm
HEIGHT 298.0mm
LABEL PANEL 108.0mm
PUNT DEPTH 21.0mm
WEIGHT 480g
75cl FILL POINT 35.0mm
PALLET LOAD 1407
LAYERS 7
Available Colours

ANT

CLICK TO DOWNLOAD BOTTLE SPECS

NOTE A: CONTROLLED NECK & MOUTH REFER TO DIMENSIONAL SPECIFICATIONS FOR BVS GLASS MOUTH FINISH Norm: EN16293

DOWNLOAD BVS EN SPECIFICATIONS

LABELLING GUIDE: INDUSTRY STAKEHOLDERS INCLUDING GLASS SUPPLIERS, LABEL CONVERTERS AND CONTRACT BOTTLERS HAVE COOPERATED TO DETERMINE THE OPTIMAL LABEL SIZE AND POSITIONING ON BOTTLES AVAILABLE IN NZ.

DOWNLOAD LABELLING GUIDE
